Game Server Lifecycle

1. Start: Game server process is launched.
2. Ready: The server signals Ready() after initialization and when it is prepared to accept players.
3. Allocated: The server should call Allocate() only when the first player has joined. While in this state, the server is guaranteed not to be shut down for maintenance or scaling.
4. Shutdown or Return to Ready: Once the last player leaves, call Shutdown() (or return to Ready for reuse if your design requires it).

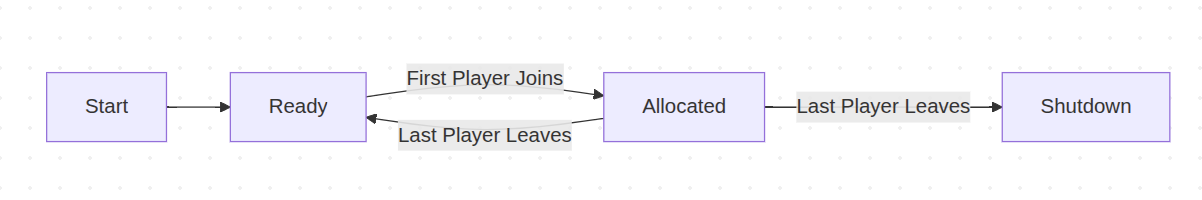

Diagram of Game Server State Transitions:

Note: Servers should not be moved directly from Starting to Allocated. Only enter the Allocated state when the server is actively serving a game session with players.

Health()

The Health() function should be called continuously as part of a regular loop in the game server software. It functions as a heartbeat signaling that the game server is still running properly. Failing to call Health() leads to the game server being forcefully shutdown after a time that is configurable in the advanced options of Armadas.

The SDKs for Unreal Engine and Unity automatically call the Health() endpoint in the background.

Ready()

Once the game server has fully started up and would be ready to accept players, the game server must call the Ready() function once.

By default, the Unreal Engine SDK automatically calls Connect() upon initializing. Connect() polls the game server endpoint until a successful response is received and then calls Ready(). While convenient, we recommend disabling this default behaviour (bDisableAutoConnect) and instead performing this call explicitly (either Connect() or Ready()), as the game server might not immediately be able to accept connections.

Reserve()

We currently do not recommend using the Reserve() function.

Allocate()

This call signals to the hosting environment that the game server is in use and should not be shut down. In any other state, the game server might be terminated at any time for scaling or other operational reasons.

You generally only need to call Allocate() yourself in one of two cases:

1) A notification from an external server allocation mechanism

This is required if you manually register against Nitrado's server allocation registry or if you use an existing game hosting SDK such as Amazon GameLift. If you receive a callback or event from these outside systems on your game server that a game session is about to start, you must call Allocate() to prevent the game session from being interrupted.

::: note Wait for state change after calling Allocate()

Calling Allocate() does not guarantee that the server moves into the allocated state. A shutdown process might already be in progress and happen in parallel. Therefore, the game server state should be watched until it switches to Allocated, before returning the callback or signaling the event that the game session has started. :::

2) There is no matchmaking mechanism

If your game is based on a server list, then there is likely no mechanism in place that can allocate the server before the first player connects. In this case, it is only possible to call Allocate() once the first player connects. However, please note that in such a scenario, an empty server might be shut down while the player is picking the server from the list.

Shutdown()

When a match has ended or no players are connected to the server anymore, the game server process needs to be shutdown.

While it is possible to simply exit the game server process, it is recommended to call Shutdown() instead. This allows the hosting environment to clean up the game server and send a termination signal to the process, which is then used to gracefully shut it down.
